Application

• Rectangular channel 5 x 5 m
• Part filled
• Concrete lining
• Flow in both directions possible

Definition of tasks

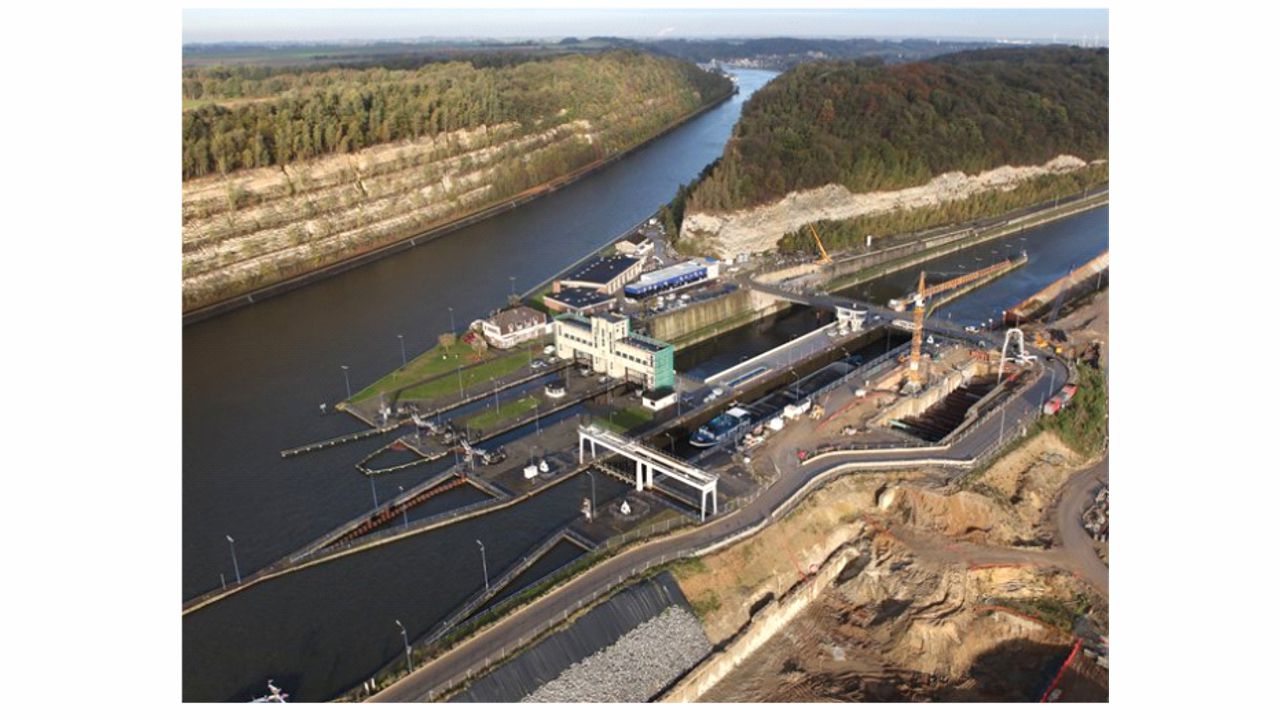

• Measurement of feed and drain volumes in the system channel to sluice chambers
• High accuracy required to create a water balance of the channel system
• Proven and reliable low-maintenance measurement system

Solution

• The bidirectional NivuFlow NF650 flow measurement system was used.

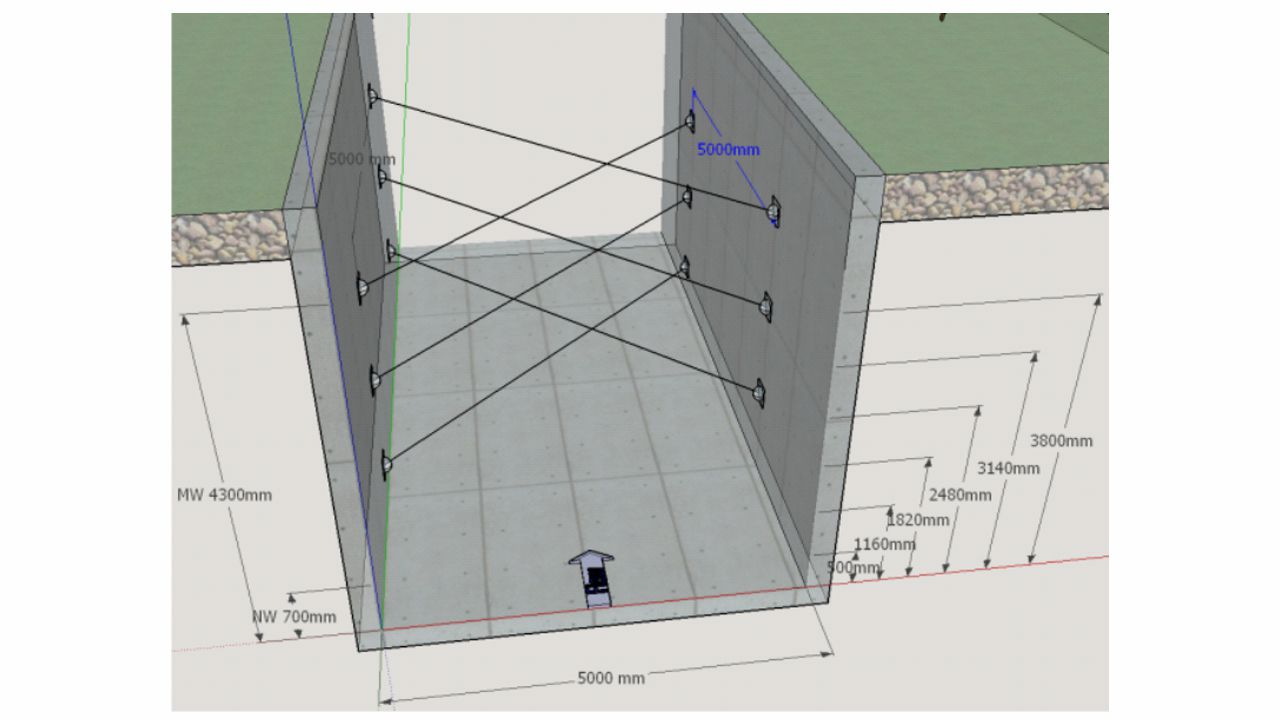

• 3 measuring levels with 2 crossed paths each and the positions of the hemisphere sensors used  as well as the evaluation of the individual velocity paths according to DIN EN ISO 748 ensure high accuracy.
