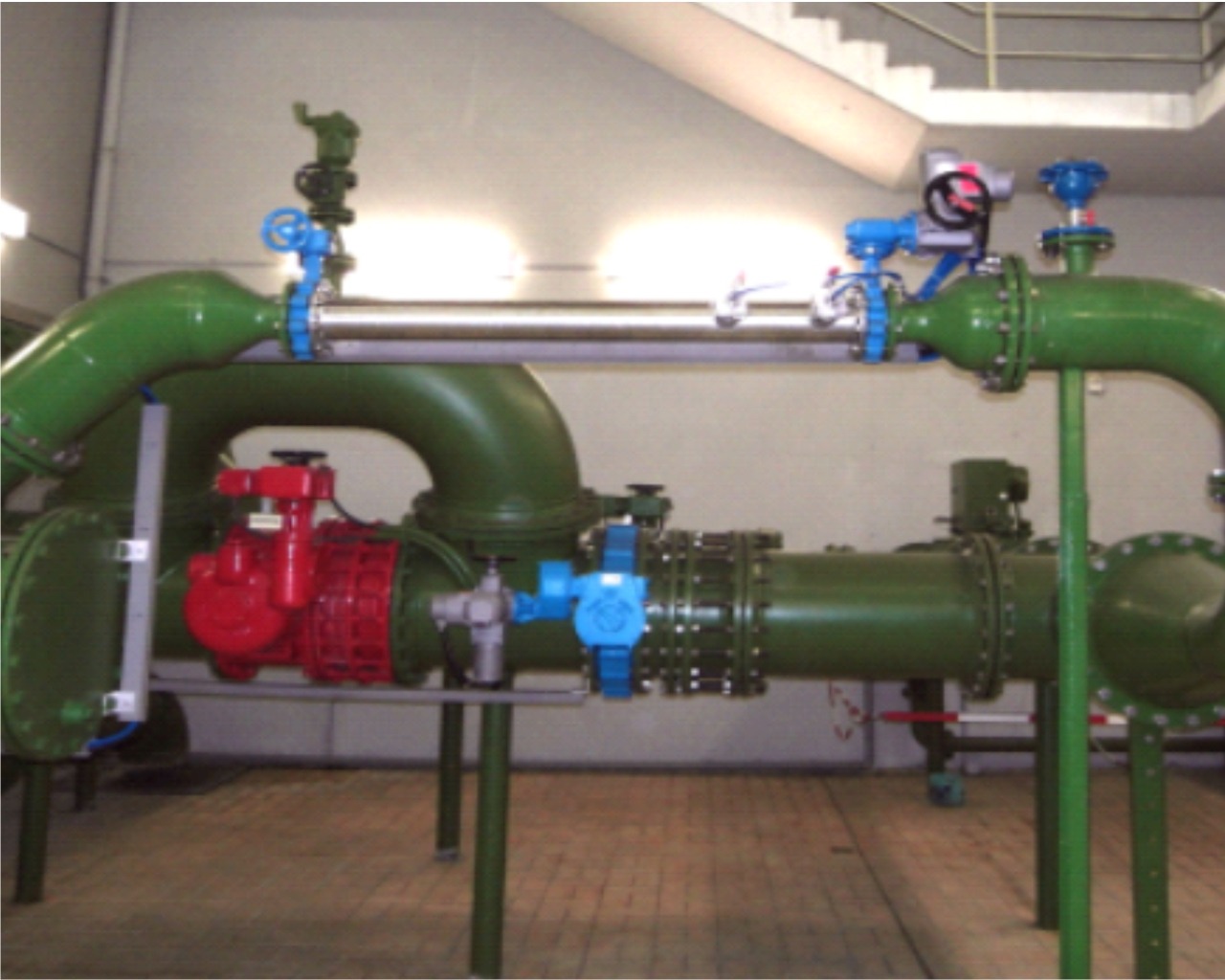

Application

• Pipe with 0.1 m diameter
• Fully filled
• Low water volumes of approx. 3 l/s

Definition of tasks

• Detection of problematic low quantities from a drinking water overhead tank during nighttimes
• Replaces the EMF not working properly due to low flow velocities
• Data transmission via GPRS to center

Solution

• The flow measurement system Type NivuFlow 600 has been used.

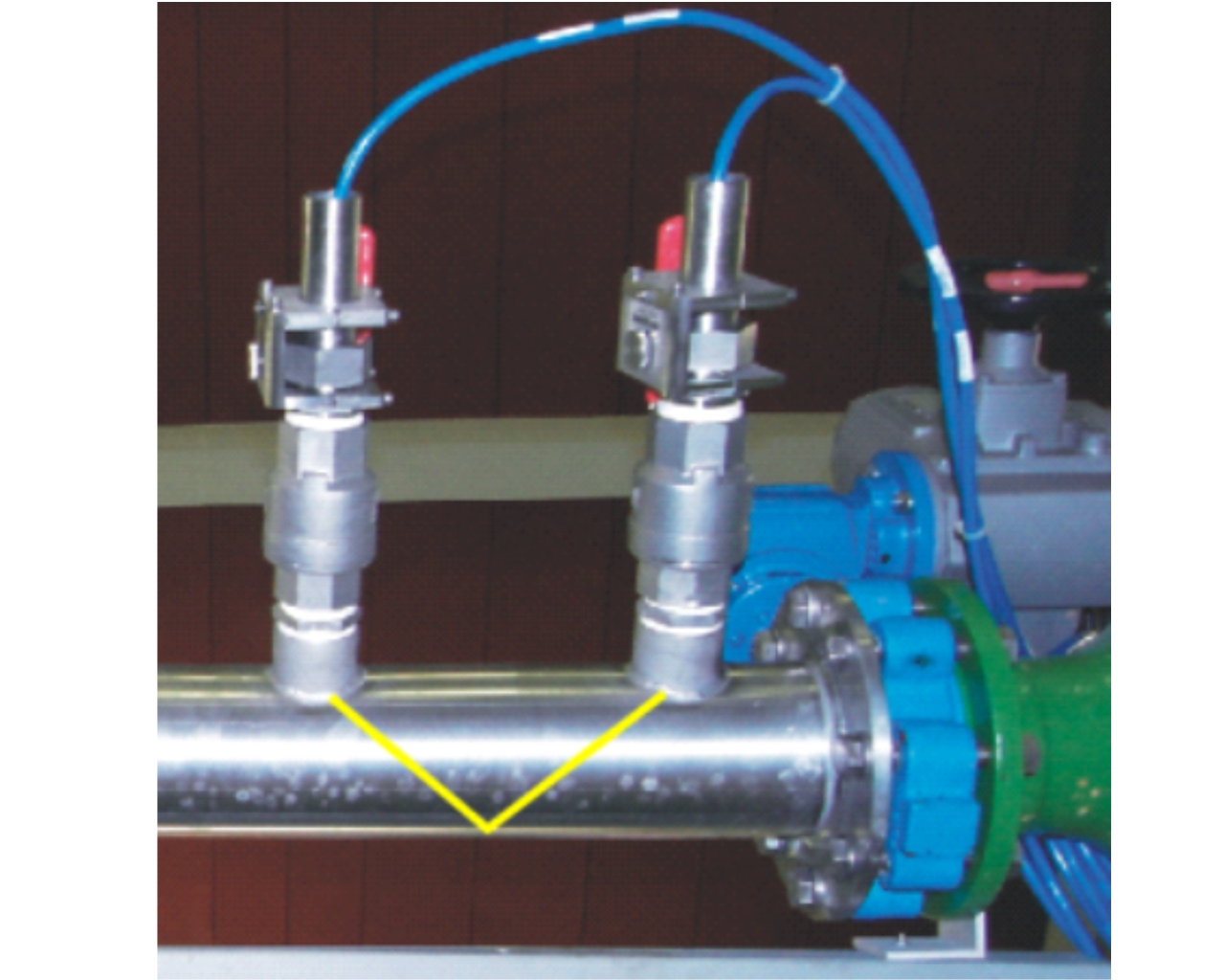

• The measurement has been installed as v-shaped single path measurement due to the narrow diameter.
• Using the transmitter-integrated GPRS modem allows direct connection as web server.
