Self-Sufficient Data Logger

NivuLink Micro II

Part No. NLG02

Autonomous gateway with mobile data transmission

NivuLink Micro II is a self-sufficient gateway for the storage and automatic transmission of plant and measurement data

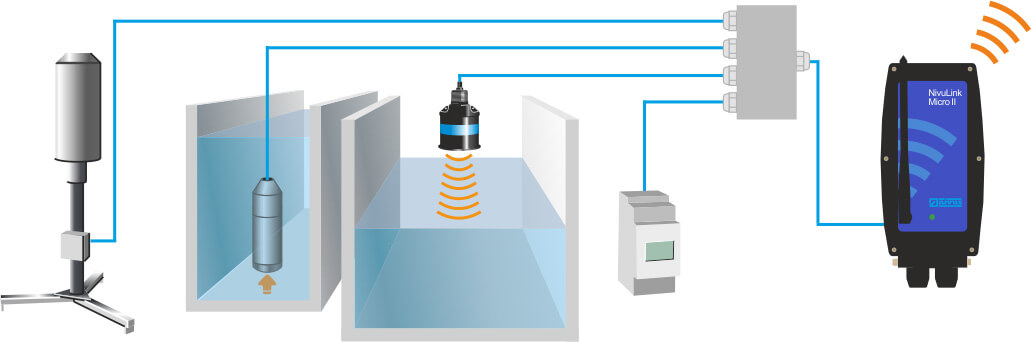

IoT for measurement places and plants without external power supply

NivuLink Micro II is a self-sufficient gateway for the storage and automatic transmission of measurement data. It also enables the integration of decentralised measurement points into a control system. Three powerful batteries provide a reliable power supply for the connected sensors and the gateway for up to 7 years*.

The data is optionally provided and processed in the customer's own control system or in our powerful NIVUS WebPortal. Up to 4 universal inputs each serve as an analogue or digital interface and, in conjunction with the integrated HART interface, enable the connection of a wide range of sensor types. The counter function enables the connection of impulse counters. Event mode provides increased resolution in the case of an event. The associated upper and lower thresholds can be defined by the customer. Event operation can also be triggered via the digital input. In addition, the unit has a sophisticated alarm management system.

NivuLink Micro II comes in a robust enclosure with IP68 protection and is suitable for use in challenging environments. Use in Ex zone 1 is also possible.

* Measurement hourly, transmission daily

Benefits

Very long battery life
Consistent communication concept with VPN communication
Use in Ex Zone 1 possible
Event operation individually configurable
Transmission cycle starting with 15 min
4 Universal inputs
Higher operational reliability through monitoring of the sensor network

NivuLink Micro II is an integrated component of our consistent communication concept. The device is already added to the NIVUS WebPortal at the time of delivery and thus immediately ready for use. Secure data transmission is an integral part of our connectivity and is guaranteed right from the start - that's what we call secure plug & play.

Reliable and quick Commissioning

Parameterisation on site or remote
Integrated evaluation and indication of echo profiles
Secure plug & play
No separate software installation

Sophisticated Alarm Management

Five upper and five lower alarm thresholds per measurement channel
Freely configurable alarm thresholds and hysteresis

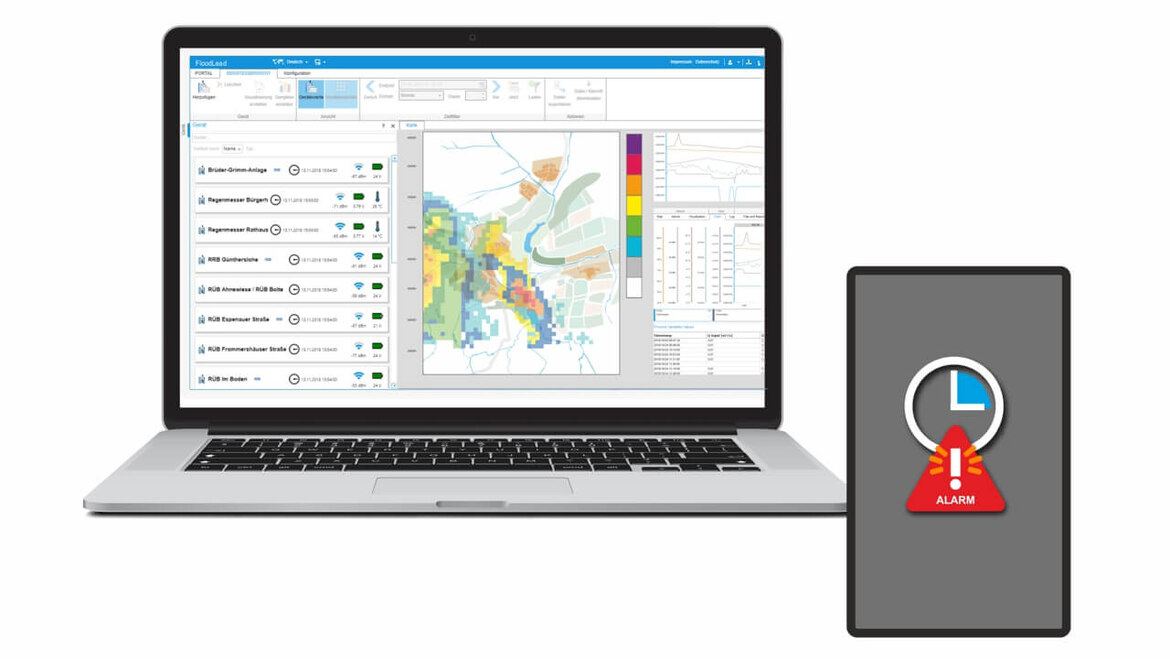

Alarms sent by SMS or e-mail to freely definable groups of people
Overview of all alarm messages

Warning Messages

Exceeding and falling below individually defined thresholds
Sensor error / error analogue input

Allgemein
Measurement principle	4-channel data logger (4x universal input)
Power supply	Internal (depending on device): 3x Battery Li-SOCl2, 3.6 V, type D (s. a. Chap. "48.1 Battery Replacement") 1x Rechargeable battery (Non-Ex version only) External (Non-Ex version only): for battery-operated data logger: 5…15 V DC for rechargeable battery-operated data logger: max. 24.5 V (incl. possible open circuit voltage) External (only Ex device): Intrinsically safe power adapter: Umax ≤ 11.7 V / Imax ≤ 1.25 A / Pmax ≤ 14.6 W
Enclosure	Material: Plastic
Protection	IP68 (closed)
Weight	approx. 350 g or 1200 g (both incl. batteries)
Display	Status LED on device Parameterisation via mobile terminal device
Ex-Approval	ATEX: TÜV 22 ATEX 314574 X II 2G Ex eb ib [ib] mb IIB T4 Gb IECEx: TUN22.0006X Ex eb ib [ib] mb IIB T4 Gb
Operating temperature	Non-Ex device: -20…+80 °C (device without batteries/rechargeable battery) Ex Device: -20 °C ≤ Ta ≤ +50 °C It is essential to observe the corresponding instructions / recommendations of the manufacturers of the batteries / rechargeable batteries used.
Storage temperature	−30 … +80 °C (device without batteries/rechargeable battery)
Max. humidity	90 %, non-condensing
Display	Status LED (RGB) for indicating the operating status
Operation	Magnetic switch for starting a time-limited online connection; via Micro-USB with notebook or PC
Inputs	4x 0...20 mA / 0…10 V / digital universal input
Outputs	1x Micro-USB for read-out of measurement values via Micro-USB cable / USB isolator to a SELV/PELV device 1x Relay output 100 mA / 26 V
Storage cycle	1 min. to 24 hrs., time-cyclical or event-dependent; the possible transmission cycles may differ; details in the
Data memory	Internal; 80.000 measurement cycles
Interface	RS 485 / Modbus RTU / HART
Data transmission	Direct connection to notebook/PC via plug-in Micro-USB cable Via 2G/3G/4G
