Mounting Accessories Level Sensors
Limit Level Accessories
Part No. ZUB0 ZMSfor quick and easy installation of limit level sensors

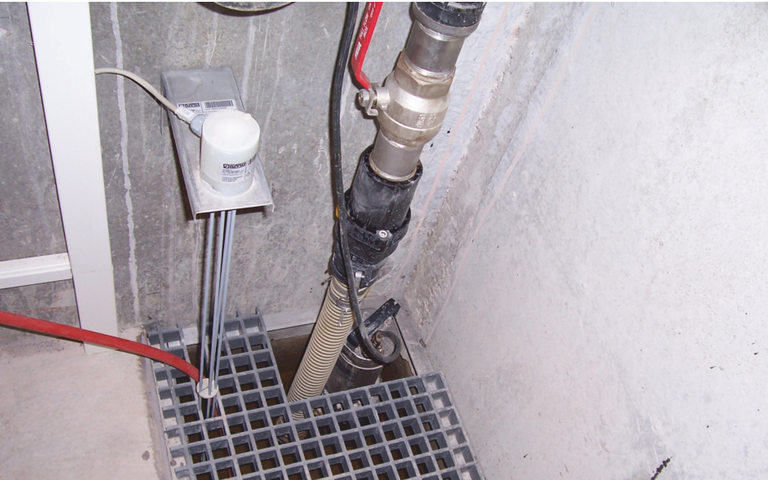

The mounting accessories allow quick and easy installation of limit level sensors. The solid high-quality accessories made of stainless steel 1.4571 are suitable for installation in outdoor and indoor areas.
- Quick and easy installation of limit level sensors
- Solid and robust constructions in stainless steel 1.4571
- Includes all fastening materials
The mounting accessories allow quick and easy installation of limit level sensors. The solid and high-quality accessories made of stainless steel 1.4571 are suitable for mounting in outdoor an indoor areas. All accessories are shipped always including all fastening materials.
Overview
Name | Art.-No. | Description |

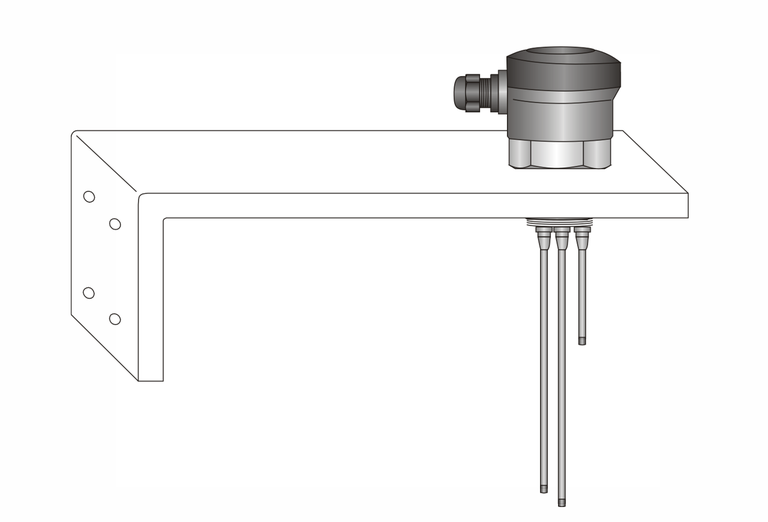

Wall mounting angle conductive rod sensors | ZMS0131 | Wall mounting angle for conductive rod sensors R1.5“ and compact echo sounder 3/6 Material: stainless steel 1.4571 Distance wall – sensor centre: 185 mm |
Wall mounting angle pressure bell switch | ZMS0132 | Wall mounting angle for pressure bell switch T202, T208, Material: stainless steel 1.4571 Distance wall – sensor centre: 83 mm |
Wall mounting angle pressure bell switch | ZMS0133 | Wall mounting angle with protective cover for pressure bell switch T202, T208, Material: stainless steel 1.4571, Distance wall – sensor centre: 83 mm |
