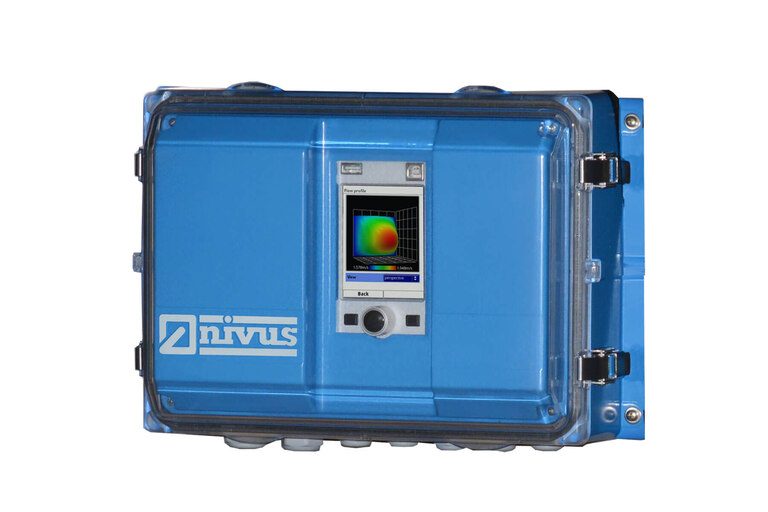

Field Enclosure for NivuFlow / NivuParQNew
Part No. ZUB0 NFWxFor installation of transmitters in outdoor areas
The robust field enclosure reliably protects your transmitter from dust, dirt and moisture. When the cover is closed, the enclosure complies with protection class IP67 (can optionally be increased to IP68). When the enclosure cover is open (e.g. during programming), the inner cover offers increased protection against contact, splash water and dust (IP54).
Description
The robust field enclosure is specially designed to accommodate NivuFlow 550 / 600 / 650 / 750 / 7550 transmitters as well as the NivuParQ 850.
In addition to the transmitter, the field enclosure also offers the option of installing a type iXT Ex isolating amplifier.
The 3-part enclosure with integrated DIN rail type TS 35 is suitable for mounting on vertical surfaces as well as on the mounting plate of the ZMS0 Mounting System
Weitere Merkmale
- Protection class in closed state: IP67 (can optionally be increased to IP68)
- Good readability of the display when the enclosure cover is closed
- Increased degree of protection (IP54) when the housing cover is open due to additional inner cover.
- Front cover can be removed without tools.
- Compatible with Mounting Accessories for Transmitters ZMS0
Technical Data
| Spezifikationen | |
|---|---|
| Material | Polyamide, polycarbonate |
| Dimensions | 355 x 233 x 130mm (W x H x D) |
| Weight | approx. 3200 g (with built-in transmitter and iXT) |
| Protection | (closed cover) IP 67 / Option: IP 68 |
| Cable entries | 2x M20x1,5, 6-12mm 5x M16x1,5 |
Specifications subject to change.
